Variable Frequency Drive VFD, AC 220V 11KWVFD Inverter Frequency Converter with Brake for Spindle Motor Speed regulation (1 phase INPUT and 3 phase OUTPUT) (220V 11KW)

In stock
$410.00
power

Use this text to encourage communication or promote sharing on social networks.

You can also add links

  • It is suitable for three-phase asynchronous motor, the technical parameters have been adjusted at the factory, and it can be used directly after power-on.
  • Input Voltage: 220V (+/- 15%); Output Voltage: 220VAC; Input Frequency: 50/60 Hz; Output Frequency: 0-650 Hz (If the set frequency needs to be higher than 320HZ, you need to set p0-22=1); Input Phase: 1 Phase; Output Phase: 3 Phase.
  • The inverter has a braking function, supports external resistors, and can be used directly without external resistors.
  • If you need to know about other parameter settings and cannot olve it by yourself using the manual, please contact the seller for technical support.
  • The machine will be repaired free of charge within one year. If you need repair, please contact the seller. If the machine has an alarm, please check the manual or contact the seller to solve it.

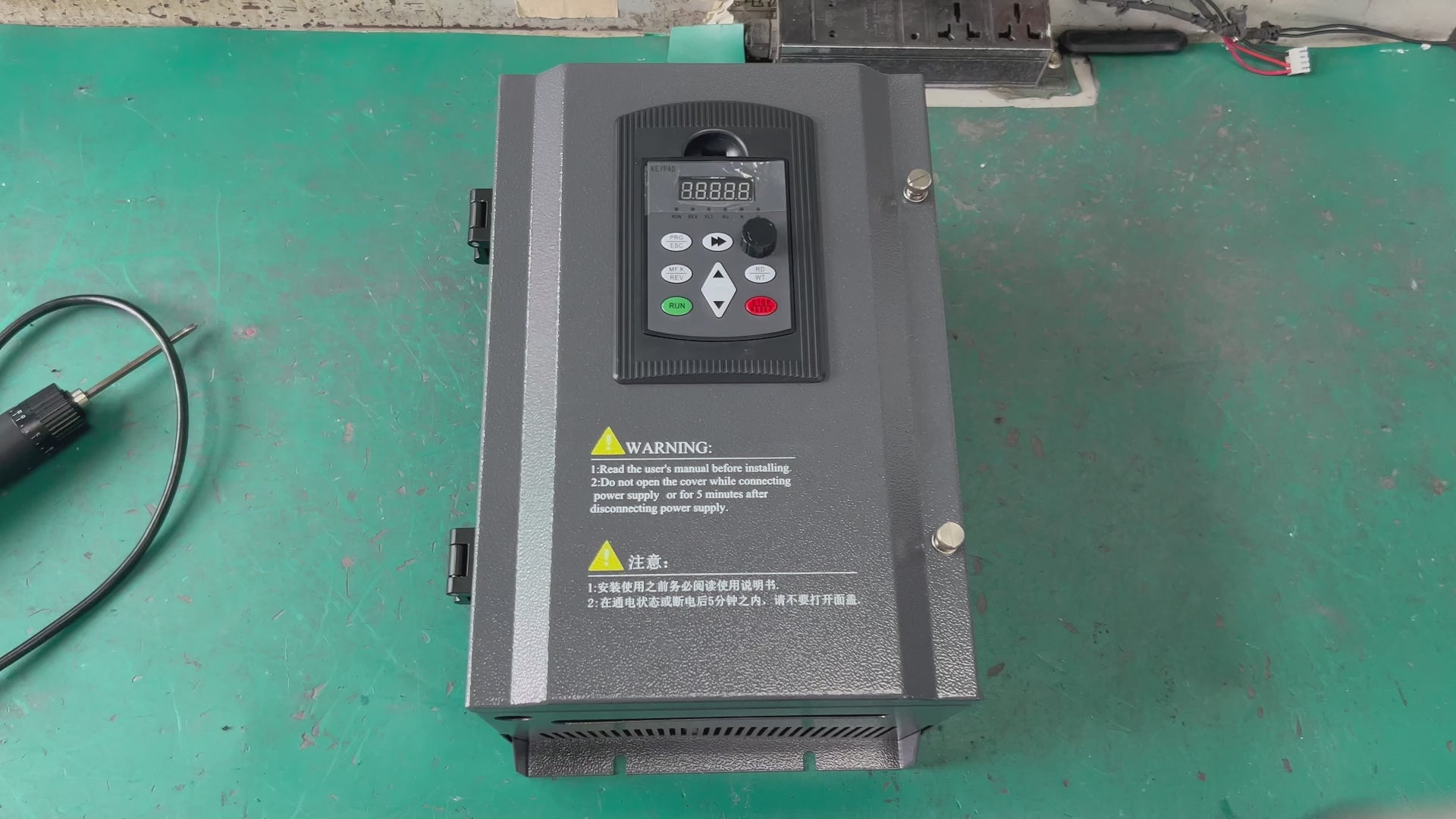

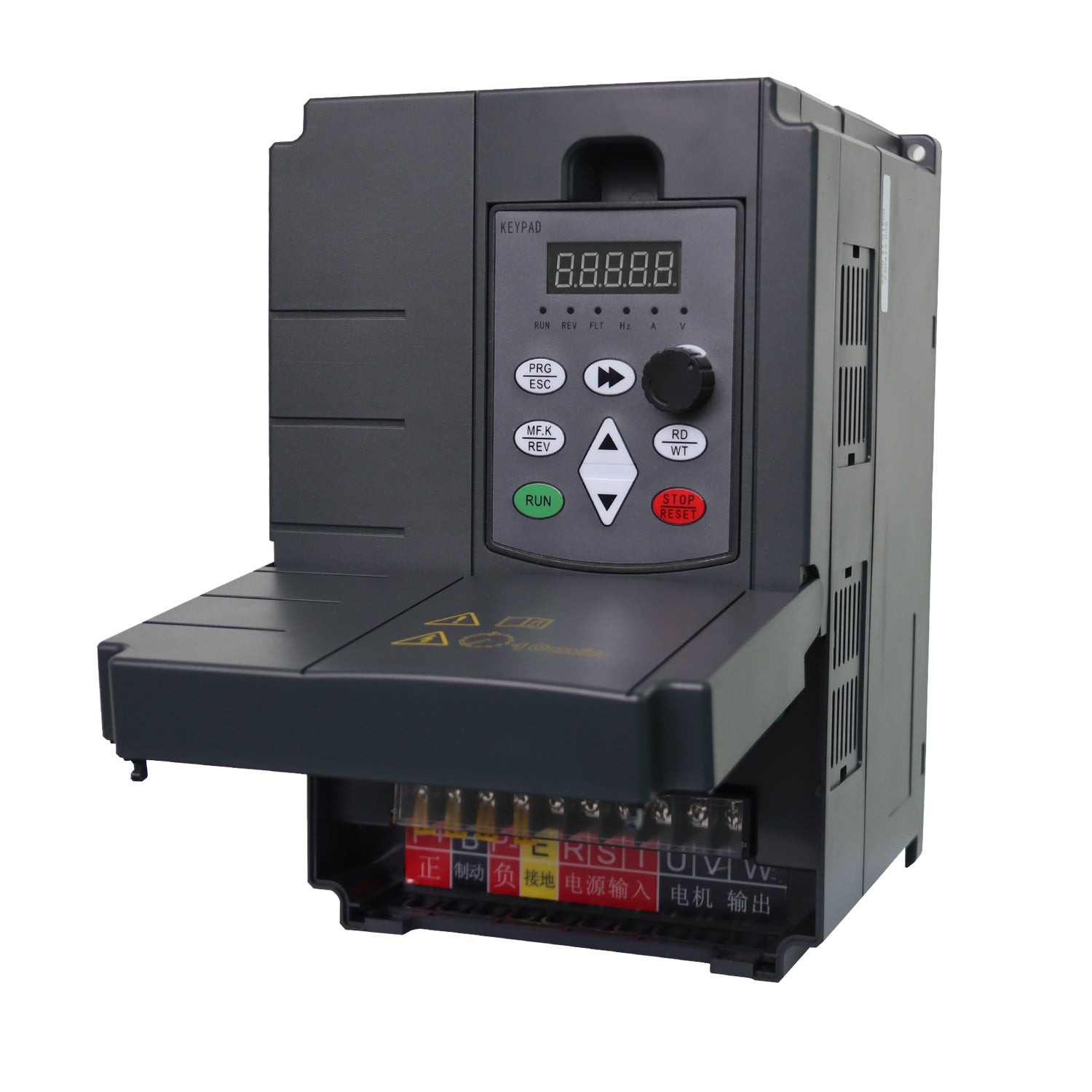

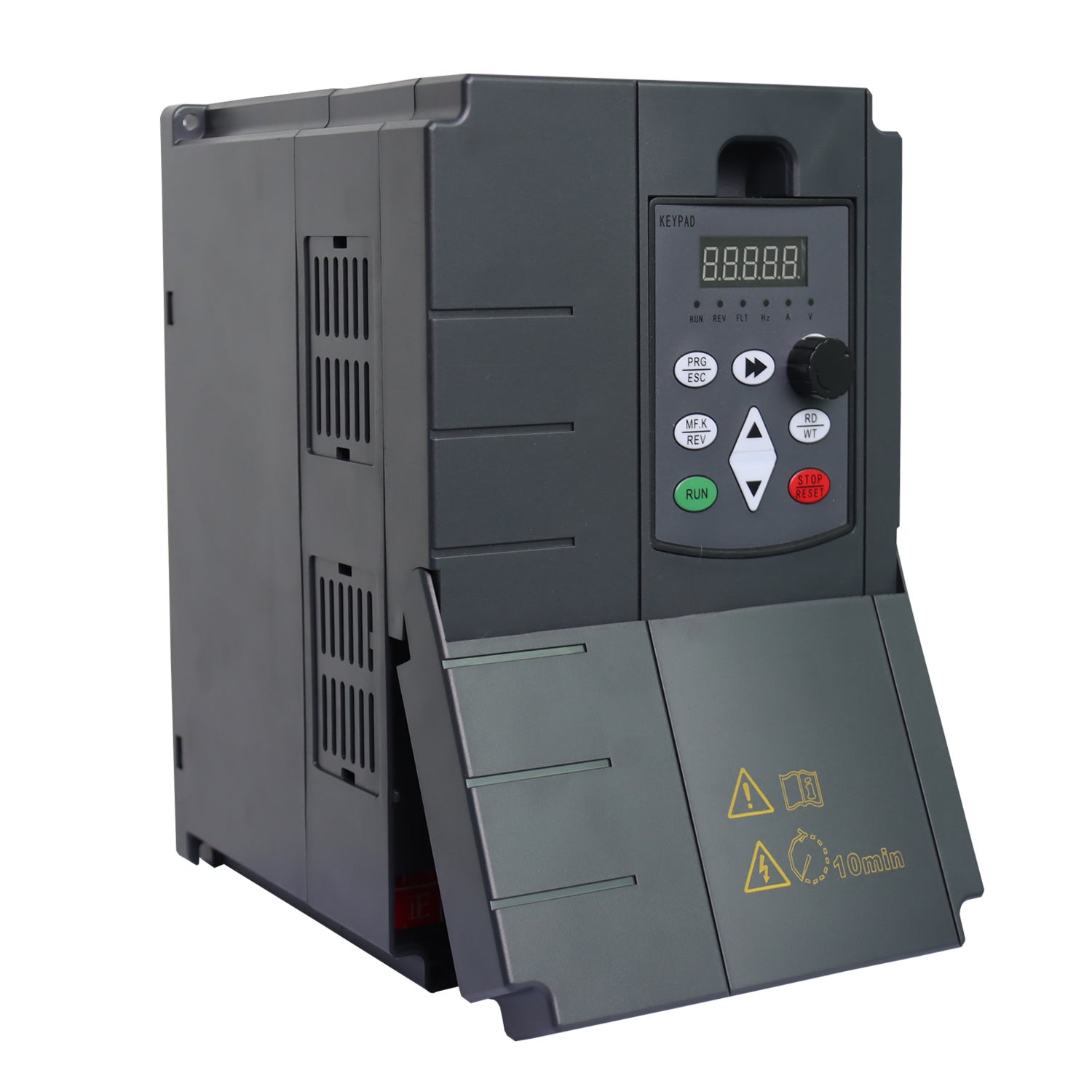

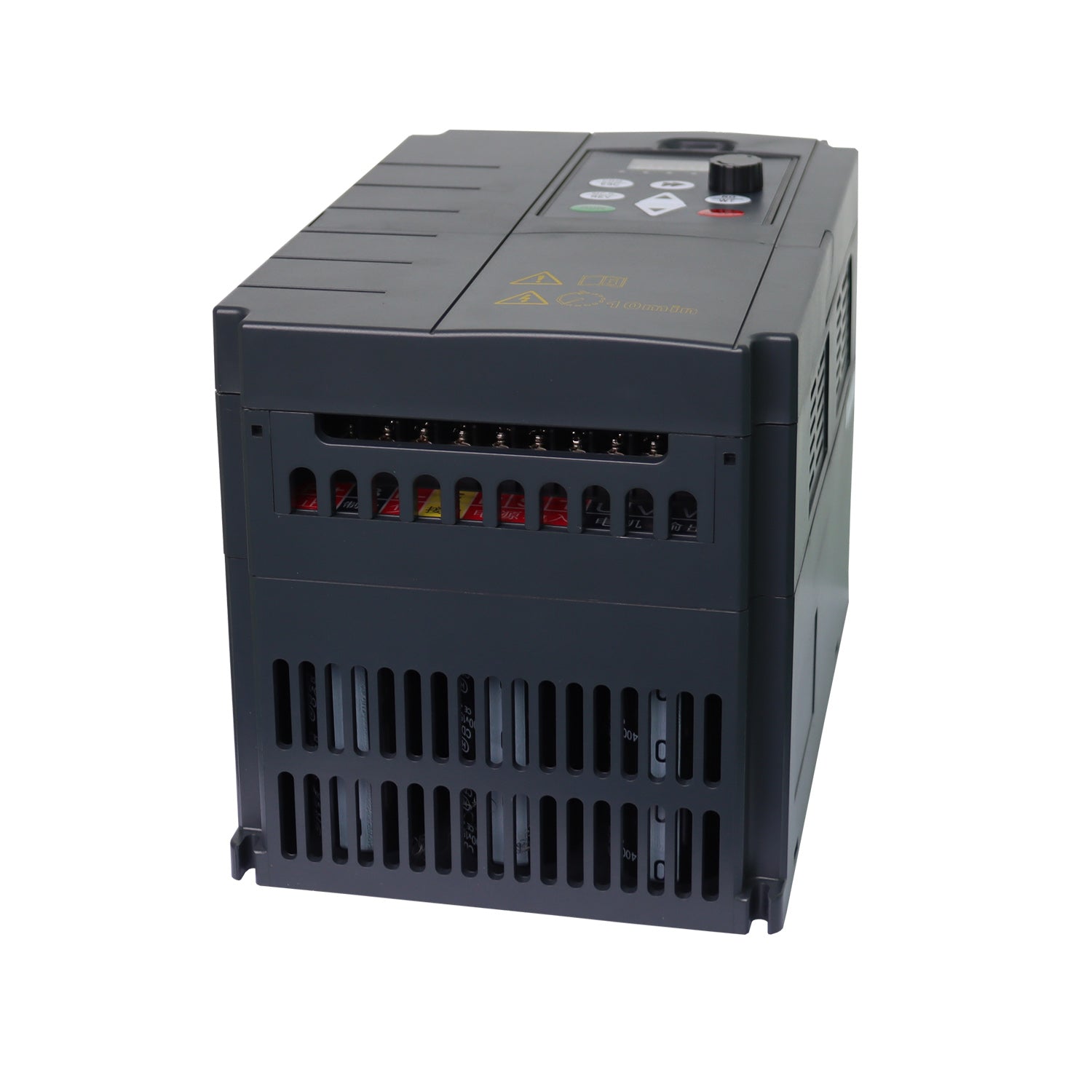

  • 220V 11KW appearance model PRODUCT DETAILS

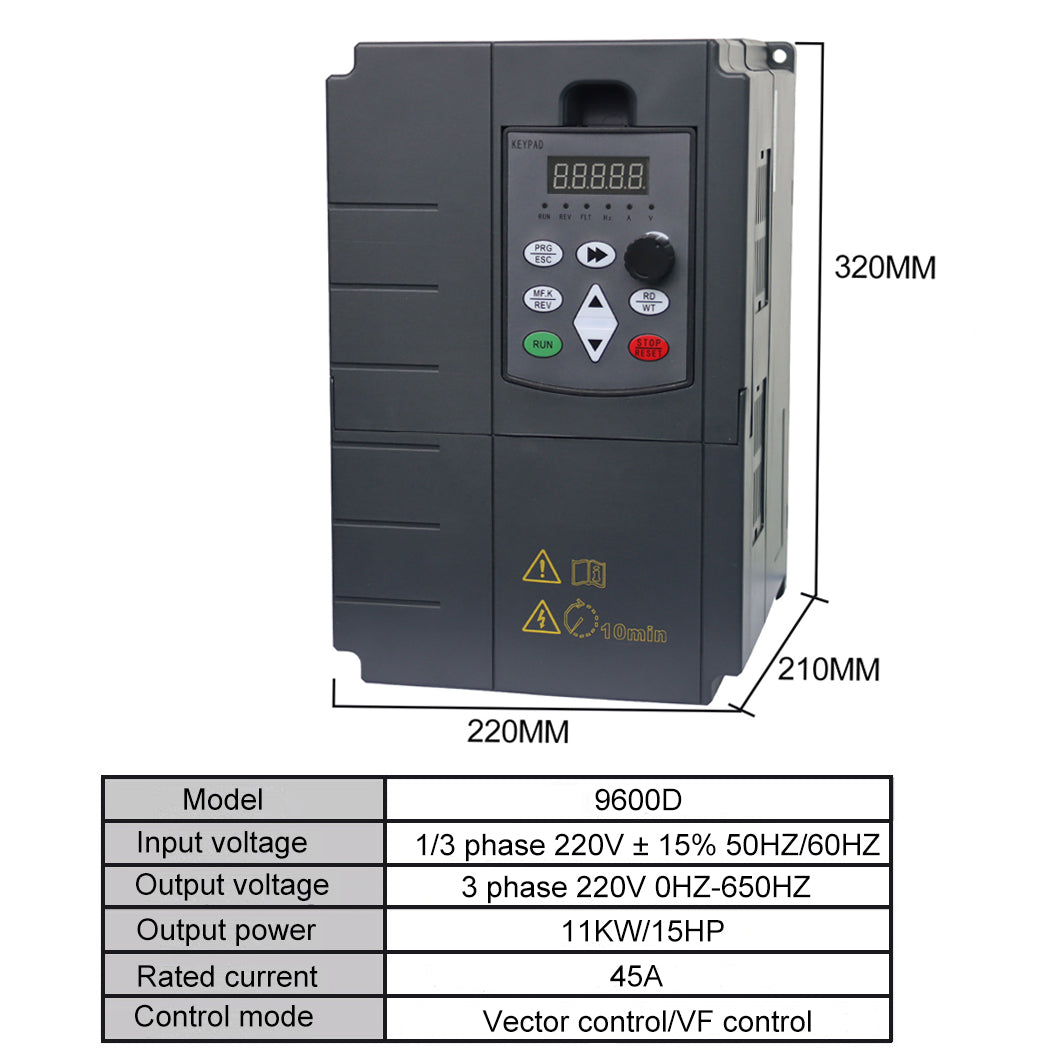

    • Model No: 9600-2T-00110-GB
    • Input voltage: Single phase/Three phase 220V+-15% 50/60hz
    • Output volotage: AC 3PH 0-220V 0-650HZ
    • Output Power: 11KW/15HP
    • Rated current: 42A(60s for 150% of the rated current)
    • Control way: Open loop vector control (SVC) V/F control
    • Shape size(mm)： 345*230*200
    • Packing size(mm)： 385*300*290
    • Weight： 8KG

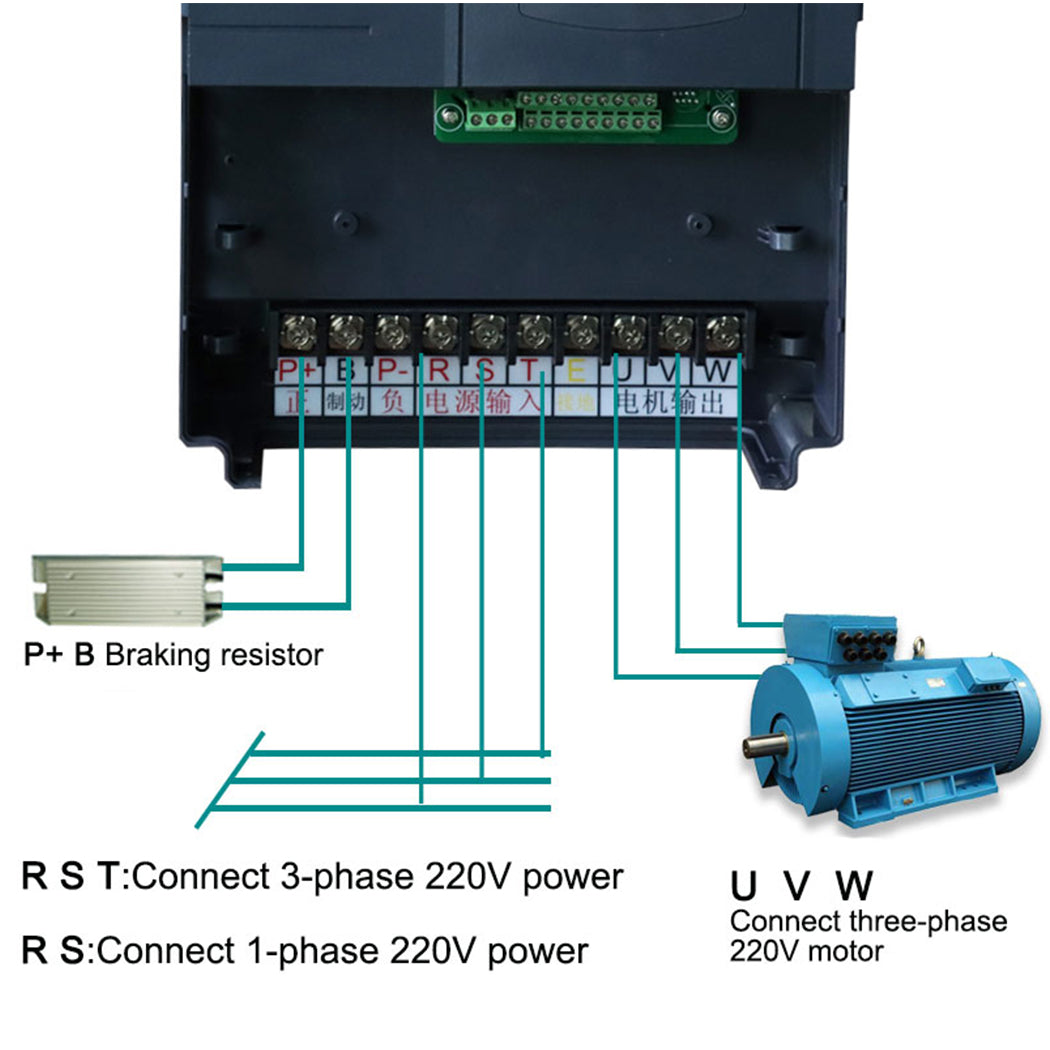

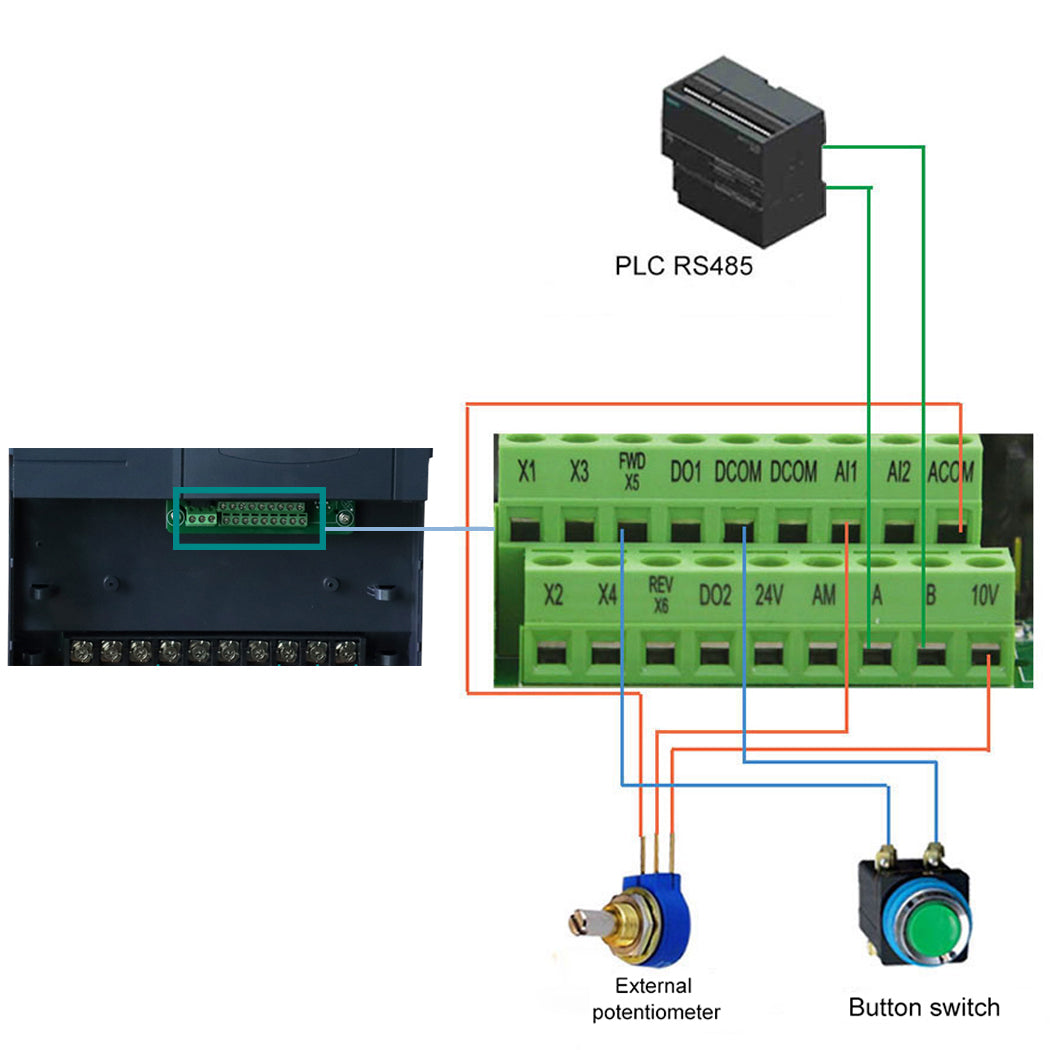

    Frequency converter wiring method, external function connection.
    Detailed description of high-performance machines

    Important notes

    This driver is only suitable for three-phase asynchronous motors. Please ensure that your motor is a three-phase asynchronous motor before purchasing. To protect VFD, please make sure to press the red "stop" button and turn off the power when stopping use.

    • Our products adopt the third generation vector technology and have excellent performance.

    A. 0.5Hz can provide 150% starting torque.

    B. Torque response speed less than 20 ms.

    C. Providing Torque Limitation to Protect Equipment Safety.

    • Our products have powerful functions.

    A.Current limiting function—Avoiding Frequent Over-current Alarm of Frequency Converter.

    B.Power dip ride through—Instantaneous power outage time converter will not shut down.

    C.Simple PLC Programming—It can achieve up to 16-segment speed operation.

    D.Multiple Protection of Motor—Short-circuit, phase-absence, over-current, over-voltage, under-voltage, over-heat, over-load protection, etc.

    • Our products have a comprehensive configuration.

    A.Built-in brake unit—Brake function can be realized by matching brake resistance

    B.18 functional terminals—Hundreds of functions can be realized through different combinations

    C.Standard RS485 communication—It can communicate and monitor remotely with PLC or PC.

    D.Relay output—More complex linkage control functions can be realized.

    Wiring diagram

    Common basic parameter settings



    • Restore factory settings: PP-01=001 P0-03=2
    • Acceleration and deceleration time: P0-17 plus p0-18 minus (9600)
    • Adjust frequency:
    • E.g. SET 60Hz: P0-10=60 P0-12=60 P0-08=60 P1-04=60
    • Set lower frequency limit: P0-14=desired frequency to be set
    • Rated speed adjustment speed: p1-05=desired speed to be set
    • Unlock password: 11229
    • Reverse: Set: 1. P7-01=2 then run 2. Function key (MF. K): switch between forward and reverse (Fix a direction to swap any two phases of UVW)
    • Connect and configure the converter for the external switch of the compressor air on/off: Terminal operation can be set, with p0-02=1, X5 and DCOM connected to passive signals. If the switch is energized, convert the electrical signal of the pressure switch into a passive signal through the intermediate relay and connect it to the frequency converter. X5 and DCOM will close and start, and open and stop.
    • Automatic operation: 1. P0-02=1 2. Connect X5 and DCOM
    • Increase display speed: P7-03=401F



    Multiple application examples

    Used on multiple devices.

    This frequency converter can only be used to connect three-phase asynchronous motors. Its main function is to adjust the frequency of the motor, and it can operate at multiple speeds and automatically when powered on. It is a good helper for your wor
